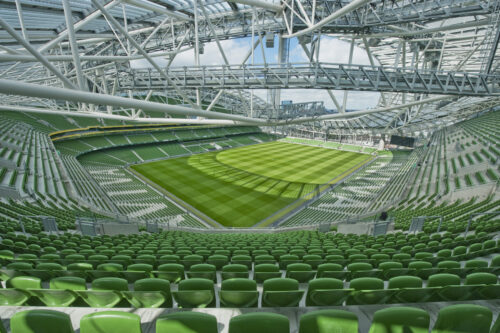

Aviva Stadium, Dublin

Its curvilinear design and glazed 50m tall facade is an iconic Dublin landmark

Aviva Stadium, Dublin

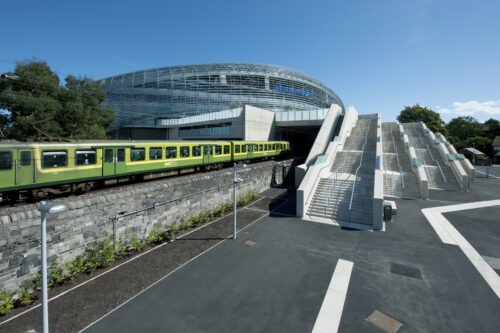

Dart @Aviva Stadium
aviva facade
Aviva Stadium 2
Outside Aviva
concrete aviva

As main contractor, we employed more than 90 sub-contractors on the project and 1,300 staff throughout the construction phase

Client Lansdowne Road Stadium Development Company
Duration3 Years
Size/Area6.4 hectares
Value€285m
ArchitectPopulos & Scott Tallon Walker

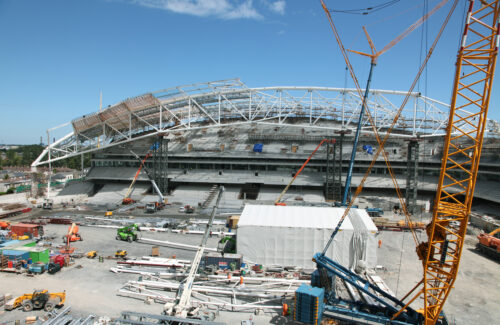

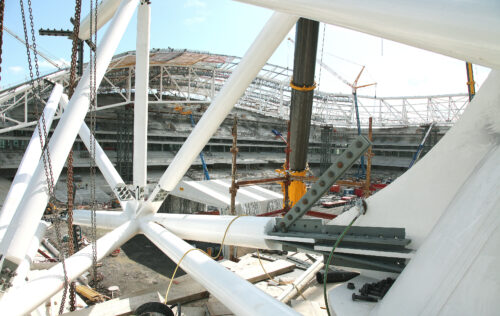

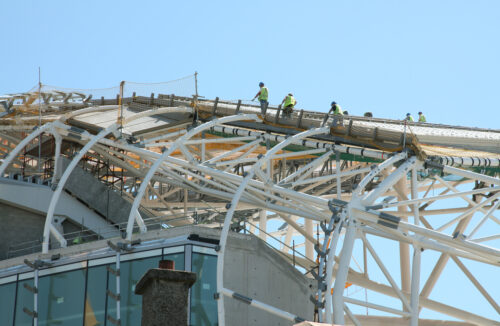

Steel Roof Installation

Designed as a horseshoe truss which was intended to be a tubular fully welded structure. The successful contractor (Cimolai) opted instead for a bolted structure where the bolted connections are concealed. Because of the curvilinear shape and varying height the only symmetry is at the North-South access with minimal repetition.

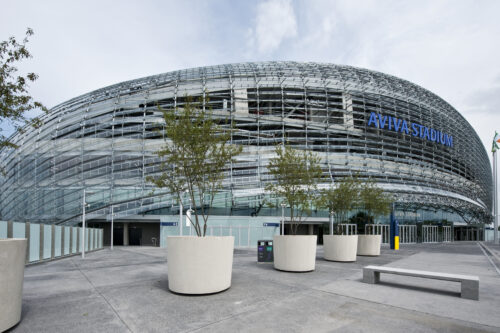

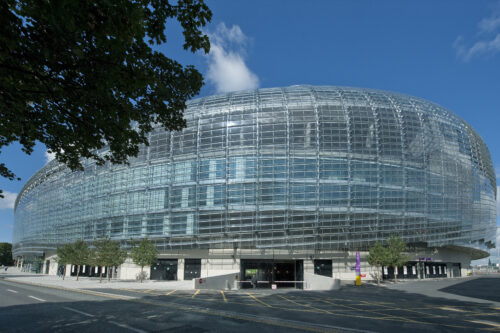

Facade

The scale of materials involved in creating the Aviva Stadium’s facade and roof was unprecedented; with some 19,000m2 of polycarbonate sheeting used on the roof and more than 17,000m2 of polycarbonate used on the facade, which consists of 4,500 louvres set of differing angles.

All of our building experience was brought to bear on this project to deal with the many complex facets which it presented, including management of the very complex steel roof structure and facade installation, through to managing adjacent neighbourhoods.

Award Winner

The project won the 2010 Irish Concrete Society Award (Overall Winner) and the 2011 British Construction Industry Award for Best International Project.

5,000 Tonne

Roof steel

17,000 M2

Polycarbonate facade

1.5 Million

Accident-free hours
